Metallic surface hardening process　(Metal Powder Jetting process)



It can be made surface hardening and toughness enhancement by jetting the particles of about 10μm on the metal surface (iron) without ant deformation on the surface. It means that metal fatigue strength improvement and abrasion resistance improvement drastically.

It is possible to process it according to a small lot.

Hardness measurement


Micro-Vickers hardness, Appling the weight 200gf/s

high-speed steel


 　The Non-processing MPS:  683

After processing MPS: 955　



Processing displacement amount measurement

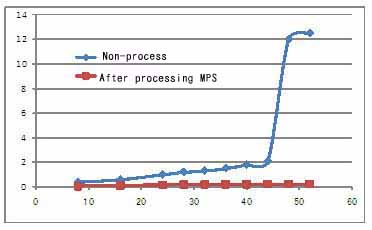

Carbon steel

displacement amount measurement with constant pressure from top

 Displacement magnitude

Non-process
Pressurizing （ｋｇｆ）  8  16 24  28   32 38  40  44   48 52
Displacement magnitude(mm) 0.4  0.8  1  1.2  1.3  1.5  1.8  2.1  12  12.5

After processing MPS


Pressurizing（ｋｇｆ）  8  16 24  28   32 38  40  44   48 52
Displacement magnitude(mm) 0.08 0.13 0.17 0.2 0.2 0.2 0.2 0.22 0.22 0.22

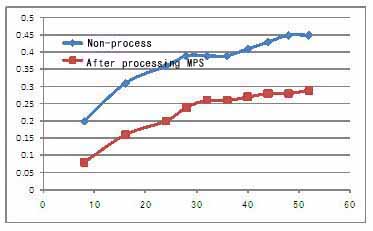

High-speed steel
Non-processing
Pressurizing（ｋｇｆ）  8  16 24  28   32 38  40  44   48 52
Displacement magnitude(mm) 0.2 0.31 0.38 0.39 0.39 0.39 0.41 0.43 0.45 0.45

After processing MPS
Pressurizing（ｋｇｆ）  8  16 24  28   32 38  40  44   48 52
Displacement magnitudemm) 0.08 0.16 0.20 0.24 0.26 0.26 0.27 0.28 0.28 0.29


Carbon steel 　　　　　　 High-speed steel
Destruction width measurement

Width carbon steel that metal was clamped by stock device and metal plate was destroyed.


 　Carbon steel
　Non-process：29mm　　　After processing MPS：9mm
 　High-speed steel
 　　

Non-process：57mm After processing MPS：32mm

Consultation of device and processing


TEL:052-758-1102　　FAX:052-758-1103
　

Please inquire of Here.
